PRODUCT

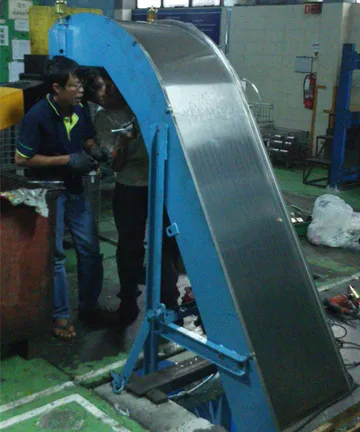

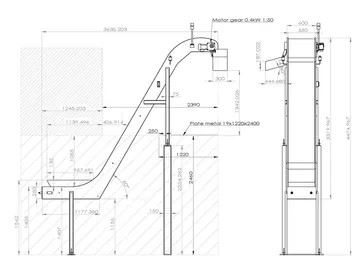

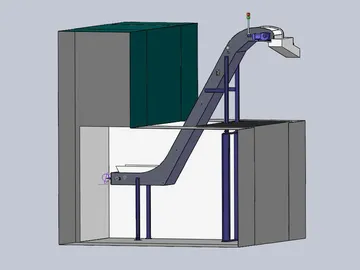

MAGNETIC CONVEYOR
SPECIFICATION
| Frame: | 6mm. ss-400 |
| Frame Widths: | 600mm. |
| Frame Height: | 250mm. |
| Slider Bed: | 2mm. thickness, 550mm.widths, sus304 |
| Sideguides: | 25mm. tall |
| Inclined Angles: | 60 degree |
| Magnets: | ferrite 537x50x25mm. |
| Magnets Pitch: | 508mm. |
| Roller Chain: | C2052 A2 |
| Conveyor Speed: | 57m/min |
| Motor: | mitsubishi 0.75kW,4P 380v 3phase |
| Gearbox: | transtecno model cm-075 ratio: 1:20 |
